The complete guide
Choosing Rising Butt Hinges for Carpet Clearance
When a door starts catching on carpet
A door that drags across carpet is a small problem you notice every day. Opening it takes more effort. Closing it may pull at the carpet pile. You might find yourself lifting the handle just to move through the room.
Rising butt hinges are one option to consider when floor clearance is the issue. Their action lifts the door as it opens, helping it pass over a thicker floor covering. That makes them different from ordinary hinges, which keep the door at a fixed height during its swing.
This Auto-plaza pair is listed for use with thick carpet. It comes with screw fixings and has a stated size of 100 mm by 52 mm by 1.8 mm. Before buying, the important task is to check whether that size and hinge action suit your door.
Start by finding the cause of the rubbing
Carpet is not always the reason a door catches. Loose screws, a shifted frame or a poorly aligned door can create a similar problem. Changing the hinge type without checking the cause may leave you with the same rubbing in a different place.
Look at where the door touches. Does it drag only over the carpet as it opens, or does it also catch against the frame? Has the problem started since a new floor covering was fitted? Those observations can help an installer decide what needs attention.
Avoid forcing the door while you work out the cause. If it is heavy, loose or difficult to control, have someone qualified inspect it. A rising hinge is a hardware choice, not a substitute for a sound door and frame.
How rising door hinges work
The useful difference is in the movement. As a door turns on rising hinges, it also moves upward. That added movement can help the bottom edge clear carpet further into the opening swing.
The amount of rise matters. A hinge that lifts a door is not automatically a match for every carpet thickness or floor level. This record does not list the lift height, so you should request that detail if your project depends on a measured amount of clearance.
Think about the whole opening path, too. The door needs enough room above it as it rises. It must also close correctly once fitted. Checking only the gap under the door leaves out half the job.

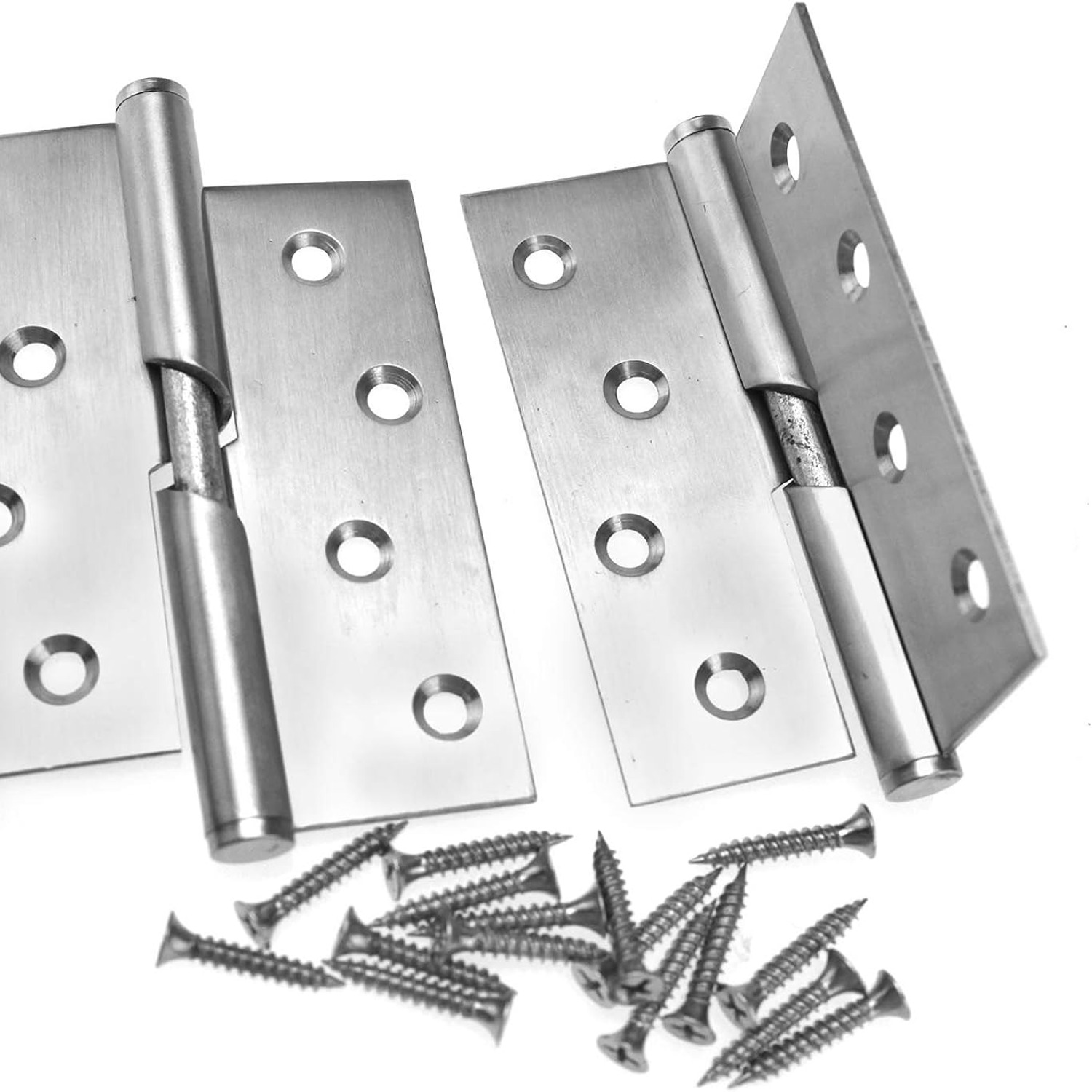

What this pair includes
The package is described as a pair of rising butt door hinges with screw fixings. The specifications list stainless steel construction, a stainless steel finish and a silver colour.
The listed weight is 340 g. That is an item specification, not a load rating. It does not tell you how heavy a door the hinges can support.
Included screws are useful, but they still need to suit the door and frame. Their length, diameter and intended fixing material are not given here. An installer may need to assess the fixings rather than use them simply because they came in the pack.
Measure more than the hinge length
When shopping for 100mm door hinges, it is tempting to compare only the length. A proper fit needs a closer look.

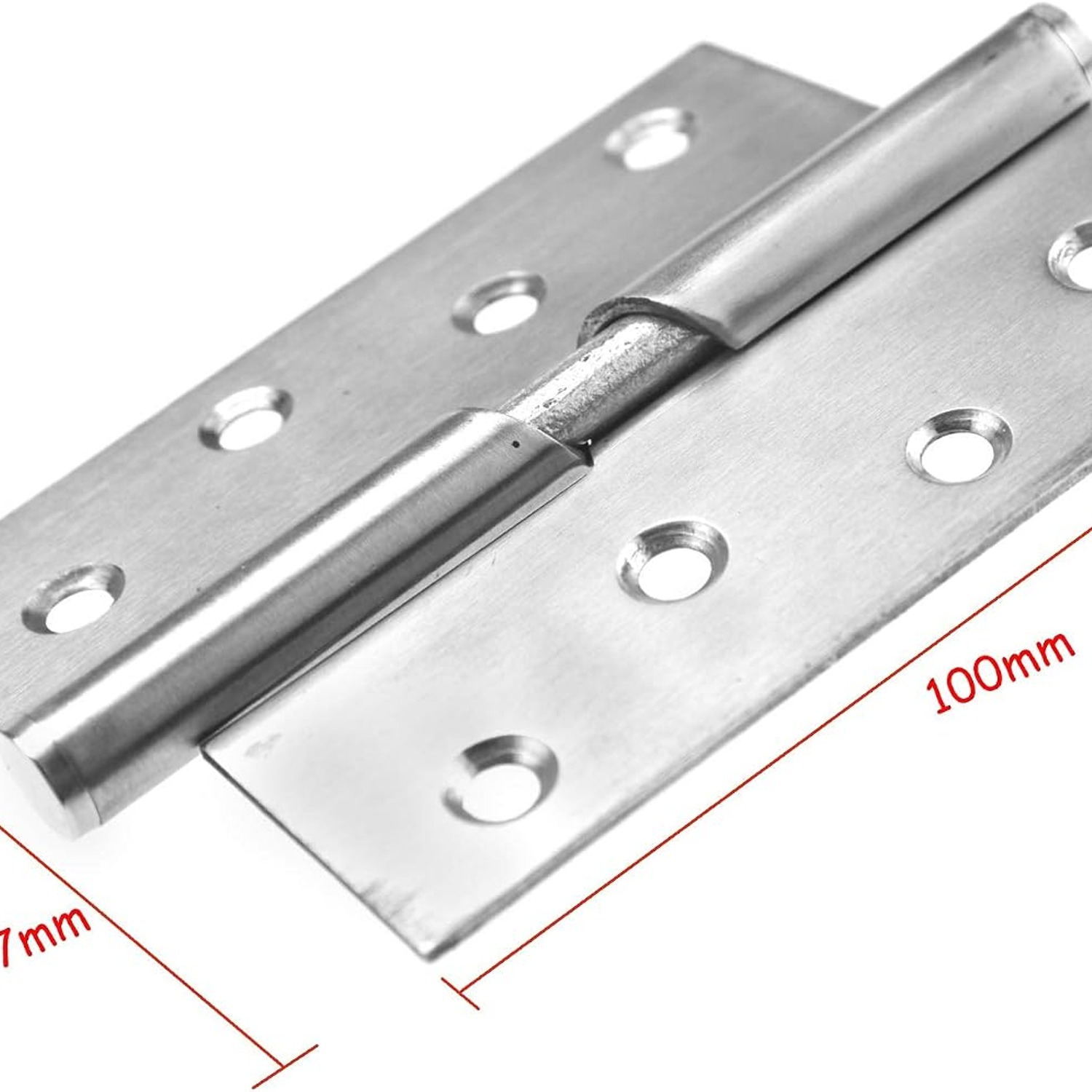

This product has a listed size of 100 mm by 52 mm by 1.8 mm. Compare those measurements with the existing hardware and the recesses cut into the door and frame. A difference in thickness can change how the door sits when closed.
Screw-hole spacing also matters, and it is not supplied in the maker's listing. Existing holes may not line up with a replacement hinge. Do not assume that two hinges with the same overall length share the same fixing pattern.
Take clear measurements before removing hardware. Photos of the hinge position and the door opening direction can also help when asking for advice.
Handing is a buying decision, not a fitting detail
These are described as handed lift off door hinges. That means you should confirm the required direction before ordering. The maker does not identify which hand is supplied.
Handing terms can be confusing when different diagrams use different viewing positions. Rather than rely on a guess, compare a supplier diagram with the door itself. Make sure both refer to the same side of the opening.
This is especially important when buying replacement butt hinges online. A product can look close to the old fitting while operating in the wrong direction. If the supplied hand cannot be confirmed, pause the purchase until that question is answered.
Check the space above the door
Carpet clearance hinges need room to do their job. If the top of the door already sits close to the frame, upward movement may cause contact there.
The lift-off description brings another clearance question. If you want to remove the door using that feature, you need enough room for the required removal movement. The exact clearance is not listed by the maker for this pair.
Ask your installer to check both normal opening and possible removal. A door that swings correctly is the first goal. Easy removal is only useful when the surrounding space allows it.
Do not force a door upward to test an unfamiliar hinge. Support it properly and follow the instructions supplied with the hardware.
Who should consider this hinge type?
Rising hinges are worth considering for a door that needs extra clearance over thick carpet, provided the rest of the installation is suitable. They may also be relevant during a flooring change when the new surface leaves less room below the door.
They are not an automatic choice for every sticking door. If the door has dropped because its fixings are loose, that fault needs attention first. If the frame is out of alignment, changing the hinge action may not solve it.
The best rising door hinges for a particular job are the ones with confirmed dimensions, direction and capacity for that door. Here, the capacity is not stated. Get advice before using this pair on a heavy or unusually large door.
Know which claims are not supplied
Stainless steel door hinges can be a sensible material choice, but the material name does not answer every suitability question. This listing does not give a steel grade, corrosion test result or exterior-use rating.
It also does not provide fire-door certification. If the door is part of a fire-rated assembly, use hardware approved for that exact purpose. Do not replace its hinges based only on size or appearance.
A tested self-closing function is not stated either. Where a door must close by itself for safety or compliance, ask for the correct rated hardware. Rising action alone is not enough evidence.
These checks are not reasons to rule the product out. They are the limits of the information available.
Plan installation before removing the old hinges
A door needs safe support while its hinges are changed. Removing screws without supporting the weight can damage the door, frame or surrounding floor.
Before starting, confirm the hand, recess dimensions, screw suitability and required clearances. Read any instructions included with the product. If those details are unclear, a qualified installer is the safer choice.
Once fitted, the door should be checked through its full opening range. Watch the bottom edge over the carpet and the top edge near the frame. Check that it closes without binding and that any latch still lines up.
Do not accept rubbing as something that will necessarily wear away. Find the cause before putting the door back into everyday use.
Keep care simple
Clean the hinges with a soft cloth and dry them after wiping. Avoid abrasive pads that could mark the visible finish. Keep carpet fibres and dirt away from moving parts.
Inspect the fixings from time to time, especially if the door begins to feel different. New rubbing, looseness or an uneven gap can signal that something needs checking.
Product-specific lubrication guidance is not included in the maker's listing. Follow the instructions supplied with the hinges or ask an installer what is suitable. Keep any cleaning or maintenance product away from nearby carpet unless it is safe for that surface.
Before you place the order
Compare the measurements and confirm the supplied hand first. Then check the missing details that matter to your project, such as lift height, load capacity or screw-hole spacing.
Delivery timing is not stated by the maker. Use the estimate shown for your address at checkout. Review our returns policy as well, particularly before fitting or altering hardware.
If you are buying for someone else, ask for measurements rather than guessing. A useful hardware gift is one that fits the actual door.
The short version
This Auto-plaza rising hinge pair offers stainless steel construction, a listed 100 mm by 52 mm by 1.8 mm size and included screw fixings. Its rising action is intended to help doors move over thick carpet.
Confirm handing, available clearance and door suitability before ordering. When those checks line up, you can choose on fit and function rather than hope that a similar-looking hinge will do.
