The complete guide
Choosing RV Cabinet Hinges That Fit Your Cupboards
A cupboard door that drops while you reach inside is more than a small annoyance. So is a door that closes with a sharp knock every time you put something away. In a caravan or camper, where storage gets used in tight spaces, the way a cabinet opens can make a real difference.

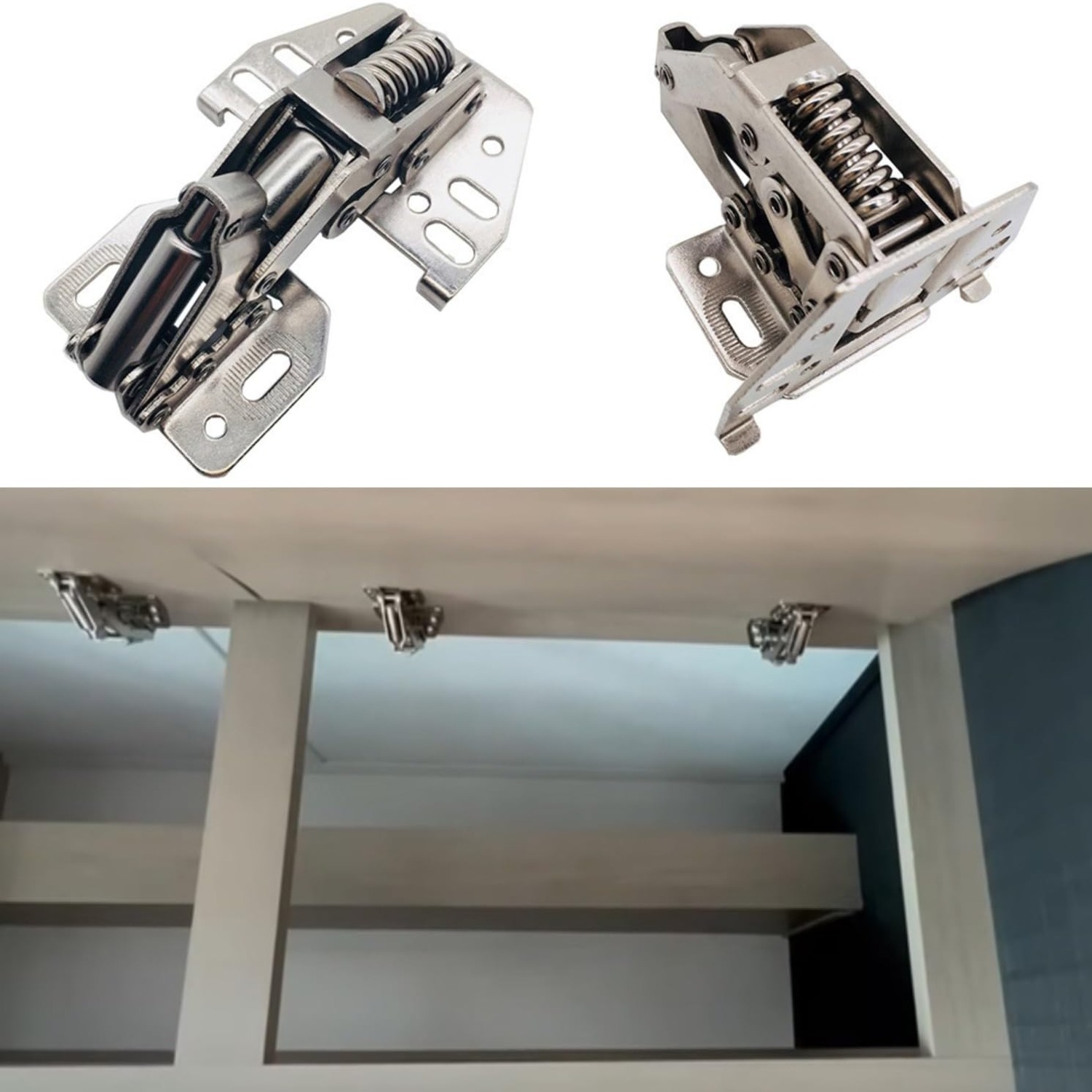

This MTSmart four-hinge pack is intended for compatible cabinet doors. It combines hydraulic damping with spring support and a 90-degree opening. Those are useful features to consider, but a good result starts with fit. Before replacing any hardware, check the door, the cabinet frame and the job the old hinge was doing.
Start with the type of door
The phrase “camper door hinge” can mean very different things. A small cupboard door and a full-size entry door do not ask the same things of their hardware. This product is listed as an RV cabinet hinge, with overhead and side door cabinets among its intended uses.
That distinction matters when comparing products. Do not assume a hinge is suitable for an outside hatch, a heavy entry door or a gate simply because it appears in a broad hardware category. The supplied record does not provide a load rating for those uses.
Look at your current cabinet before shopping. Note which way it opens, where the hinge attaches and whether a separate stay holds the door up. A few clear photos can help you compare the fitting later.

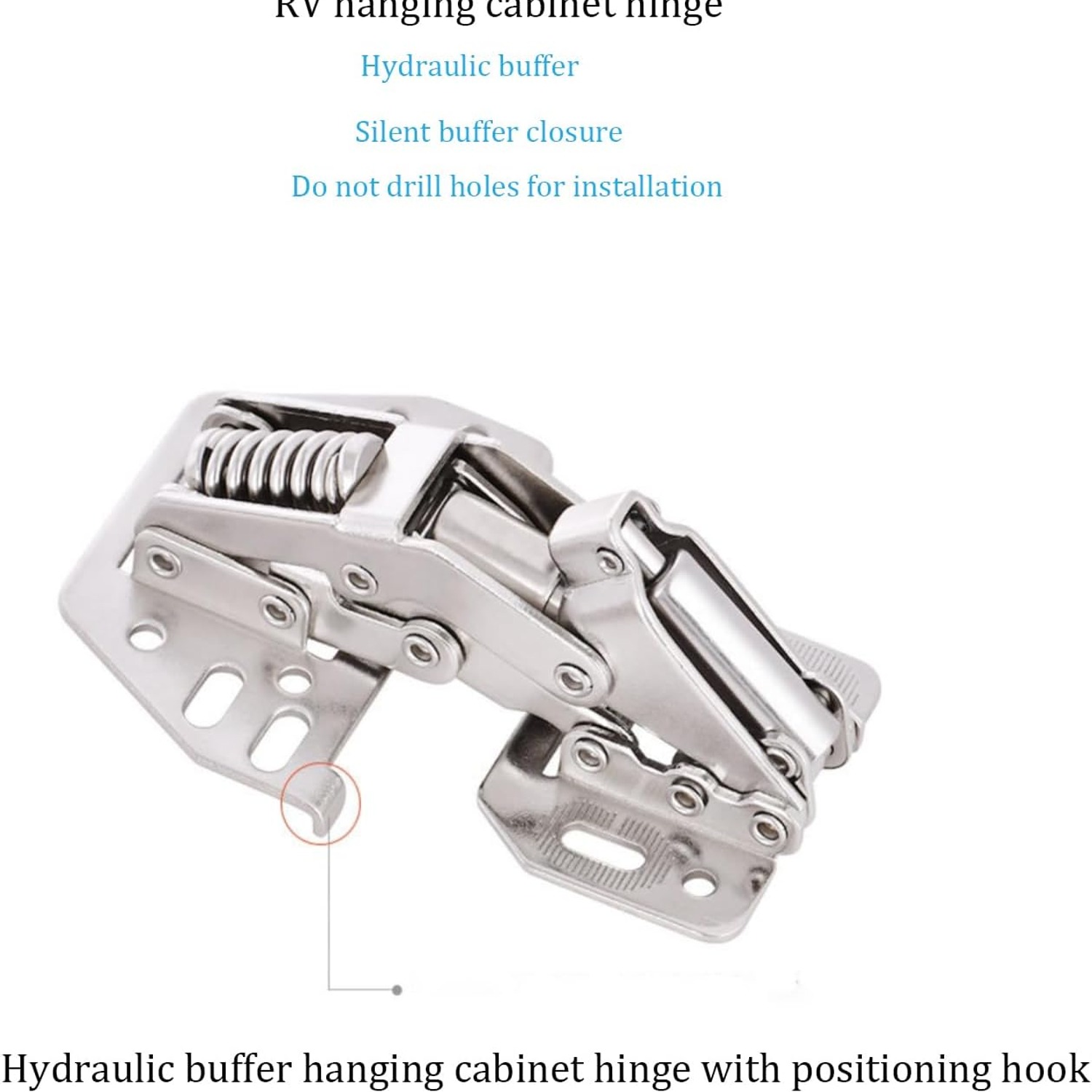

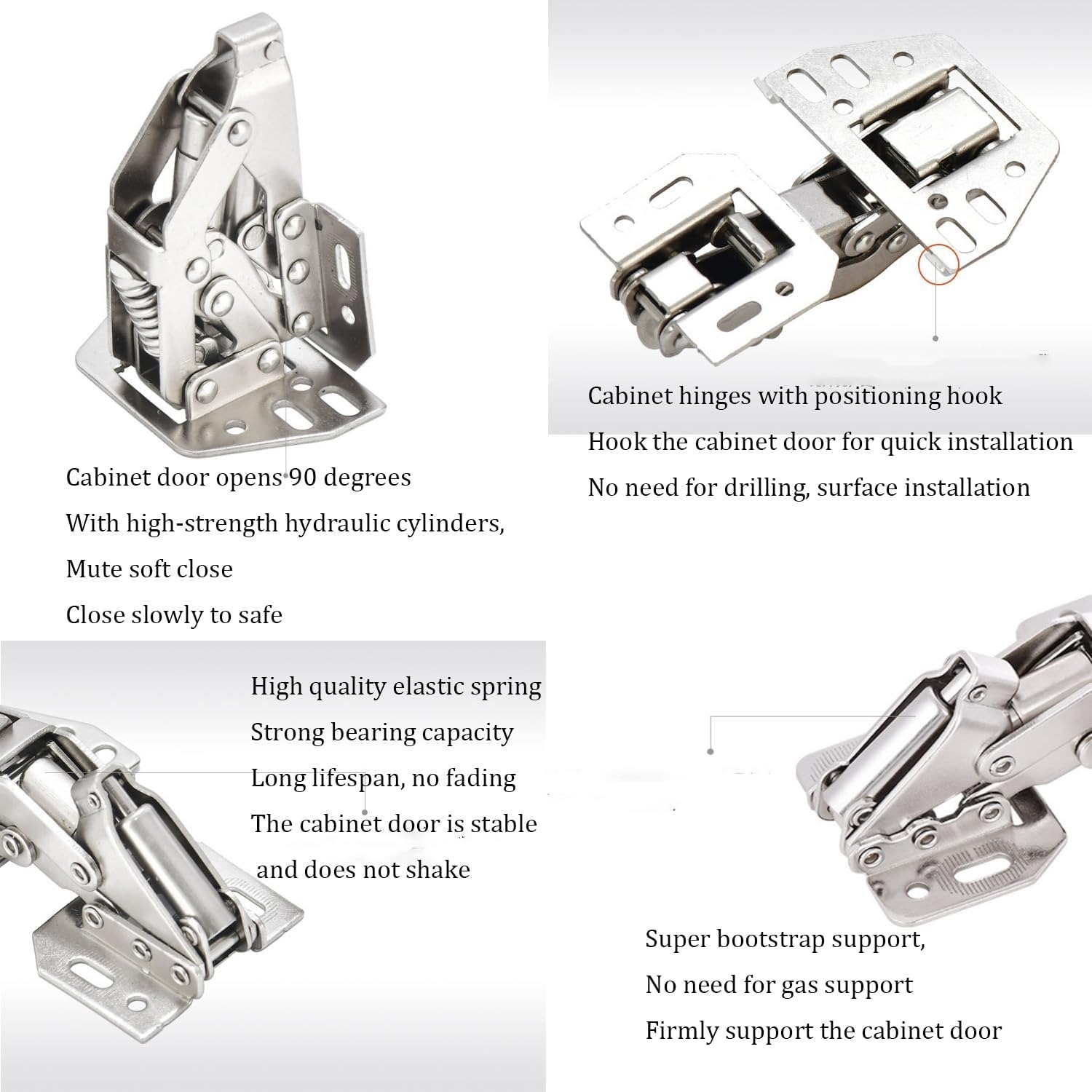

What the hydraulic mechanism does
Hydraulic cabinet hinges use damping to cushion movement as the door closes. In this model, that damping works with a spring-supported mechanism. The listed aim is gentler closing and support for a suitable door when open.
It helps to think of closing control and door support as separate jobs. A hinge may cushion movement, but it still needs to be correctly matched to the door it carries. The maker does not list a maximum door weight or a range of door sizes.
There is also no confirmed adjustment for closing speed. If that feature matters to you, ask for the fitting information before buying. Avoid treating all soft close caravan hinges as interchangeable, even when their descriptions sound similar.
Check the 90-degree opening
These hinges have a stated opening angle of 90 degrees. That may suit a cupboard where the open door needs to stay clear of the storage space without swinging farther into the living area.
Check what happens around the whole door, not just at the hinge. A handle may approach a neighbouring panel. An overhead door may need clearance from the ceiling or nearby trim. The opening should also leave enough room for the things you take out regularly.
If your present hardware opens wider than 90 degrees, consider whether a smaller opening would make access awkward. A matching finish is less important than being able to reach the back of a cupboard safely.
Measure before choosing replacement RV hinges
Dimensions and hole spacing are not supplied in the maker's listing. That means the product name alone cannot confirm a direct replacement. Even two hinges made for motorhome cupboards may have different mounting footprints.
Measure the existing hinge and note the distance between screw centres. Check the space available on both the door and the cabinet frame. Include any trim, lips or recessed areas that could block the hinge body.
Door thickness also matters when choosing screws. A fixing must hold securely without passing through the visible face. Since screw dimensions are not provided here, do not plan the installation around an assumed screw size.
If you cannot confirm these details from the available information, ask for measurements before ordering. It is better to pause than to discover that new holes would sit too close to damaged old ones.

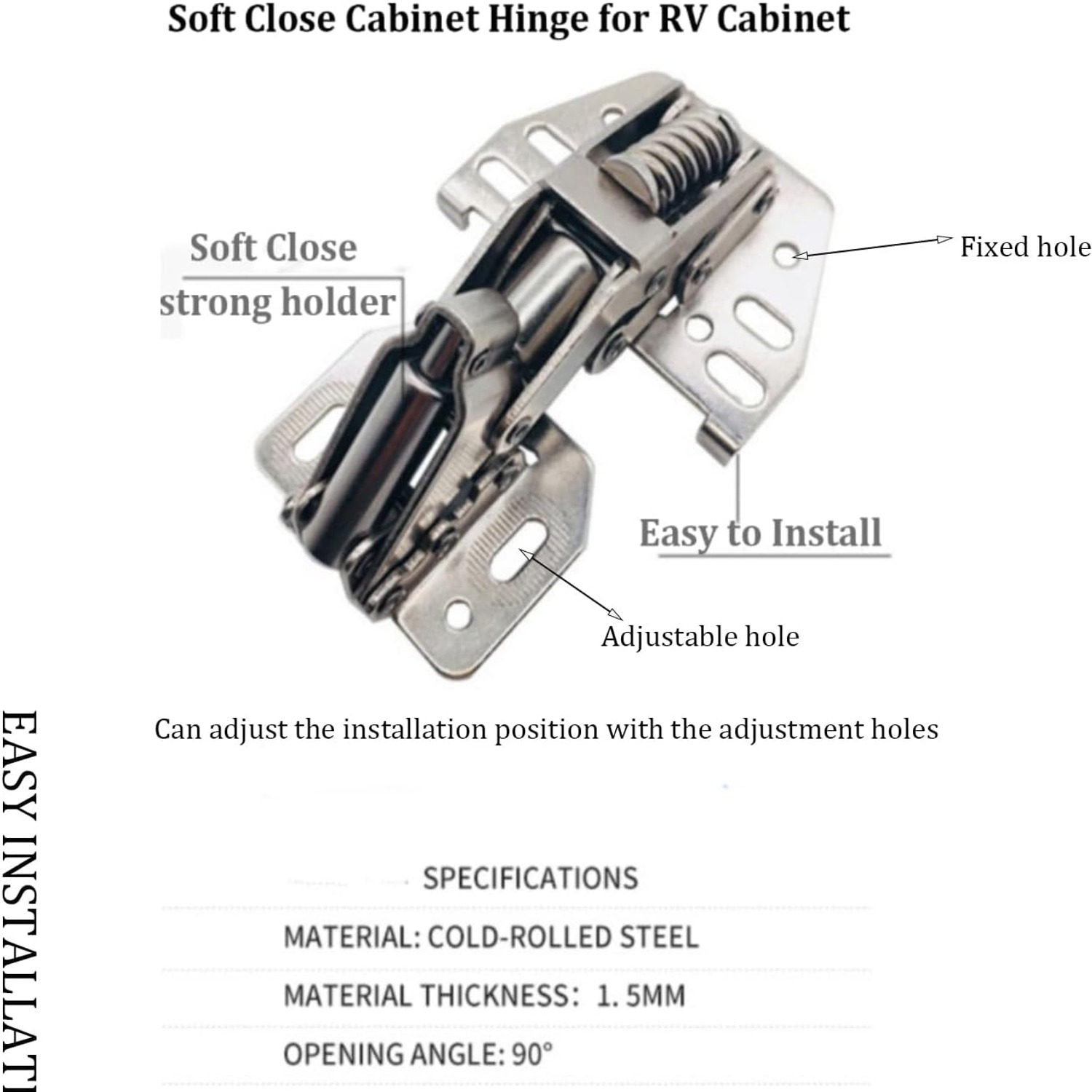

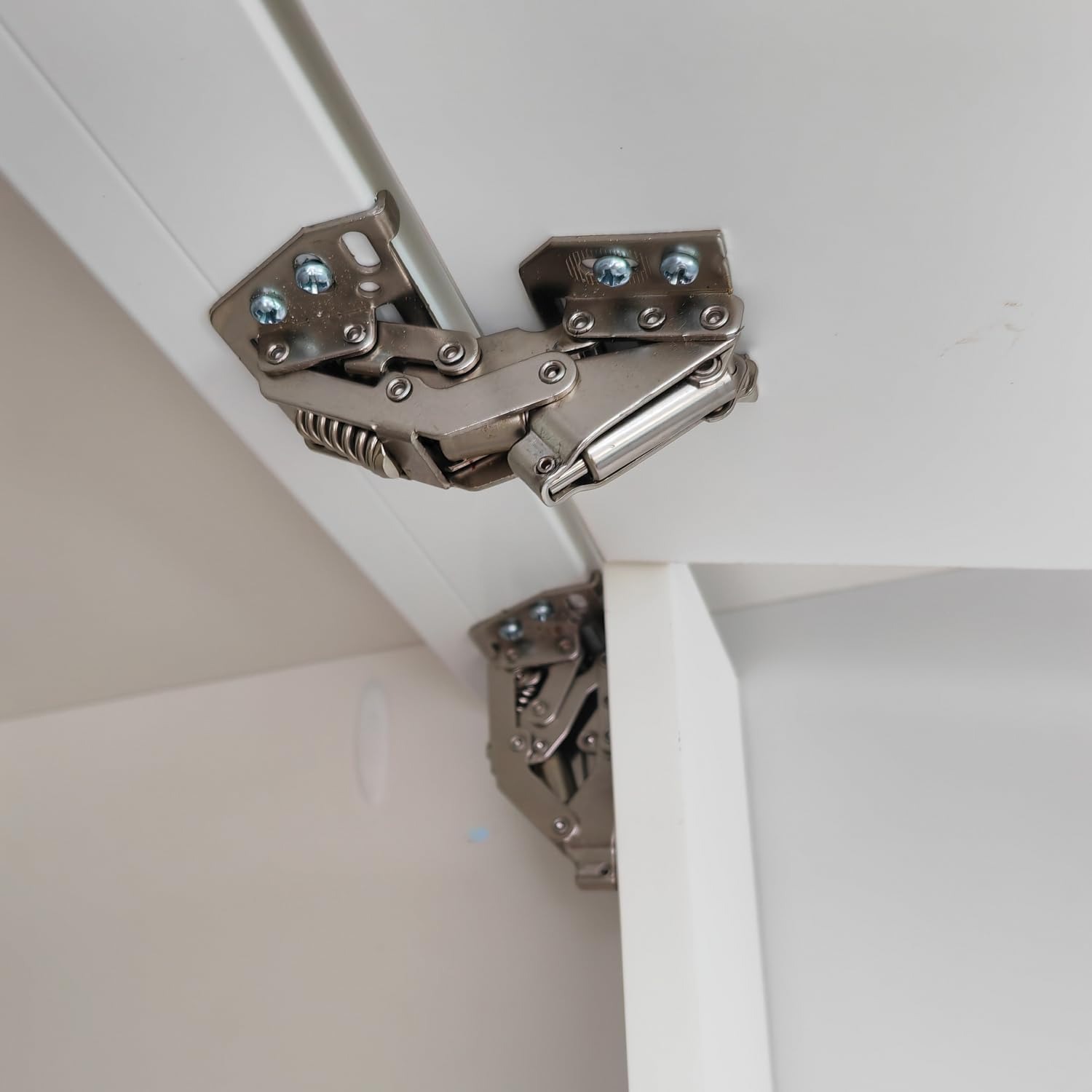

Understand surface screw mounting
These are described as surface mount cabinet hinges. They attach with screws rather than requiring a recessed hinge cup of the kind found on some concealed kitchen fittings.
The source describes installation without drilling. In practice, that does not prove every cabinet is ready for screws without preparation. Existing holes may not line up, and some materials may need pilot holes to reduce the chance of splitting.
Check the supplied instructions and the cabinet material before starting. Surface mounting describes the fitting style, not a guarantee that every replacement will be a quick swap.
Only four hinges are confirmed in the pack. Screws and other accessories are not listed as included components, so check what you will need before taking the old hardware off.

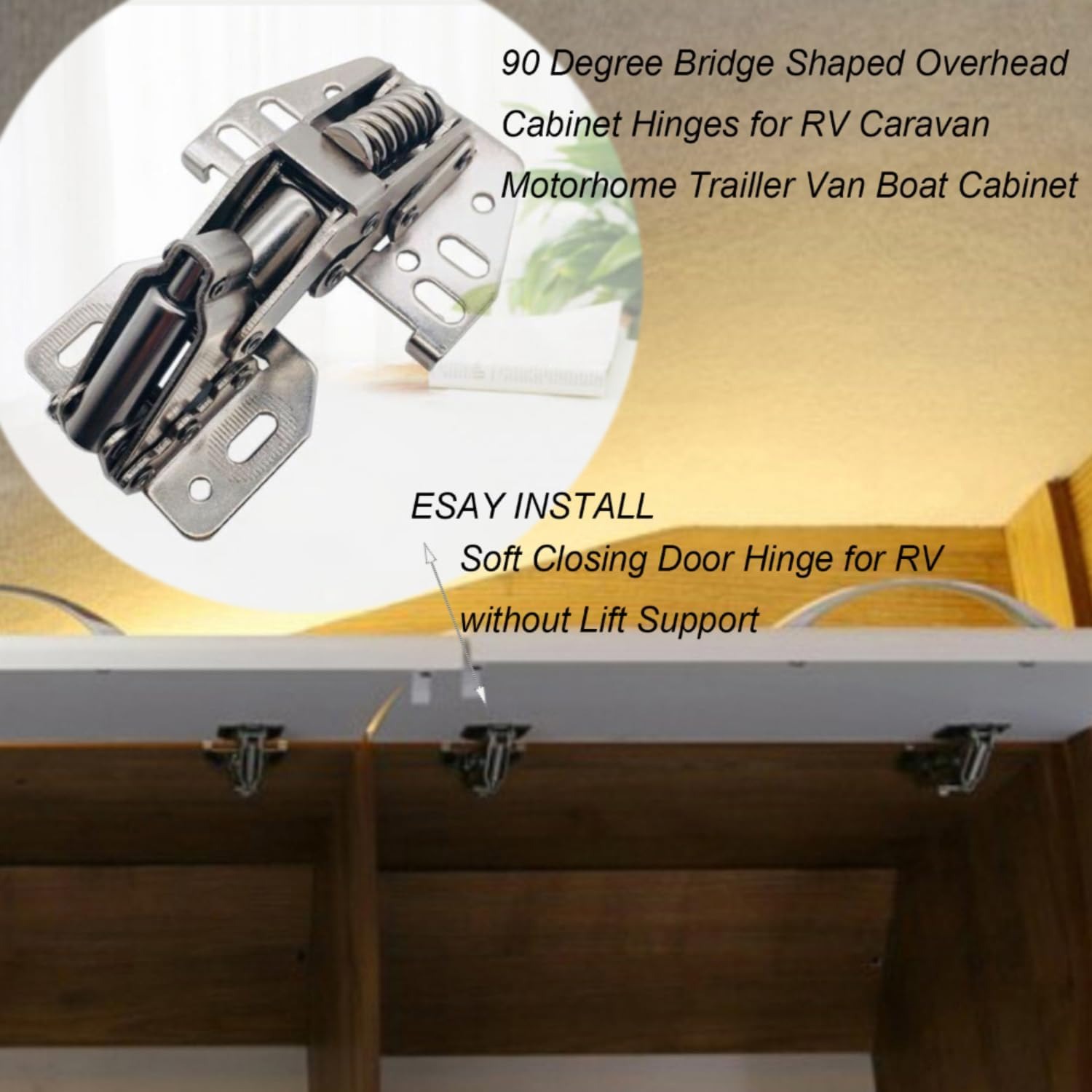

Decide whether the support suits your door
The mechanism is described as holding suitable cabinet doors open without a separate support bar. That can be useful for overhead storage, where you may want both hands free while reaching inside.
However, the maker does not list the supported door weight. Do not remove an existing stay and assume the new hinge will safely take over its job. Confirm the requirements for your particular door first.
Support the door during fitting and initial checks. If it falls, moves unpredictably or will not stay open, stop and review the setup. Adding more hinges without guidance is not a reliable way to solve a capacity mismatch.
The pack contains four hinges, but no per-door quantity is specified. Plan the number needed from verified fitting guidance rather than dividing the pack across an assumed number of cupboards.
Consider the material and finish
The detailed specifications list steel with a nickel-plated surface and a silver finish. That gives you a clear material description when comparing camper cabinet hardware, although the exact steel grade is not supplied.
The source also describes resistance to rust and corrosion. Treat that as a finish benefit, not a promise of unlimited outdoor durability. No weather exposure rating or marine certification is provided.
Boat cabinet use is listed, but a sheltered interior cupboard is different from hardware exposed to spray. The same care applies to trailer storage hinges. Confirm the demands of the location instead of relying only on the vehicle named in the listing.
Separate closing comfort from travel security
A gently closing cupboard can be pleasant to use when parked. That does not establish that the door will stay shut on the road.
The supplied record does not list a travel latch or a tested retention rating. Keep the question of securing the cabinet separate from the question of how smoothly it closes. Check any existing catches and the vehicle maker's guidance before changing the setup.
This is especially worth remembering when replacing older caravan cupboard door hinges. The original arrangement may include a stay, catch or other part that serves a different purpose. Understand each part before removing it.
Check the cabinet itself
New hardware needs a sound mounting surface. Before fitting replacement hinges, inspect the door and frame around the old screw holes. Loose material, cracks or damaged holes deserve attention before another hinge is attached.
A door that hangs badly may not have a hinge problem alone. The mounting area could be worn, or the cabinet may be out of alignment. Replacing the hinge without checking those points can leave the same trouble in place.
If you are unsure about the material or the repair needed, ask a cabinet fitter or RV repair professional. This is particularly sensible for an overhead door that could fall if its fixings fail.
Fit carefully and test slowly
Keep the door supported while removing old hardware and positioning the replacement. Follow any instructions supplied with the hinges, and check alignment before putting the door back into regular use.
Move the door through its travel slowly at first. Look for contact with shelves, trim or nearby doors. Check that the hinge does not bind and that the door closes without being forced.
Then test the support function with care. Do not put your head or hands beneath an overhead door until you are confident it is securely supported. Stop if anything feels unstable.
Keep the old hardware until the replacement is confirmed to fit and work as intended. It can be useful when comparing positions or explaining a fitting issue.
Keep care simple
Wipe the hinges with a soft cloth and dry them after cleaning. Avoid abrasive pads and harsh cleaning products that could damage the plated finish.
Periodically check the mounting screws and door alignment. Pay attention to new stiffness, scraping or a change in how the door stays open. These are reasons to inspect the fitting, not to push the door harder.
No lubrication schedule is supplied in the maker's listing. Follow the manufacturer's instructions before applying oil or another product, and do not take apart the hydraulic mechanism.
The short version
This MTSmart pack contains four nickel-plated steel RV cabinet hinges with hydraulic damping, spring support and a 90-degree opening. It is worth considering for compatible overhead or side cupboards where gentler closing is the goal.
The key missing details are dimensions, hole spacing and door weight capacity. Confirm those before buying, check whether fixings are included, and keep cabinet latching separate from soft closing. A hinge that fits the actual door is a better choice than one selected by vehicle name alone.
